Features:

• Reach Truck is required
• Pallet space increment ~ 50%
• Can be integrated with inventory management system and ERP

Suitable for:

• High throughput of pallet goods
• High requirements for storage capacity; Up to 90% storage space
• Temporary storage of pallet goods or batch buffering of wave picking orders
• Periodic large inbound or outbound
• Required to store more pallet deeps and increasing inbound capacity
• To reduce manual operation and adopting fully automated operation

System advantages:

• High-density storage: Compared with conventional pallet racking and mobile racking, it can achieve nearly 100% aisle storage.
• Cost saving: reasonable space utilization rate reduces operating costs.
• Less damage to racking and goods: Compared to the conventional narrow aisle racking no forklift is required to drive into the racking which avoid the damage to the goods and racking.
• Expandable and improved performance: It is easy to add additional pallet shuttle to operate synchronously in order to handle more pallets.

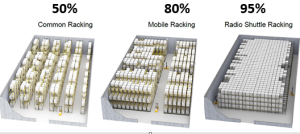

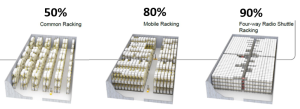

• Comparison of Storage Space Utilization

• Develops information systems by designing, developing, and installing software solutions.
• Determines operational feasibility by evaluating analysis, problem definition, requirements, solution development, and proposed solutions.

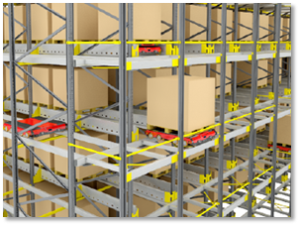

Features:

• No reach truck is required
• Lift is used to bring the pallet shuttle up & down, and move around the racking system
• Pallet space increment ~ 100%
• Can reach as high as 30m
• Integrate with inventory management system
• Load Weight: 500kg, 1000kg, 1500kg, 2000kg
• Speed: 65/85m/min (corresponding to load)
• Temperature: - 25 ~ 45°C
• Width: 1200, 1300, & 1600mm
• Length: Length 1000mm & 1200mm

System Advantages:

• Access multiple SKU's on any aisle, any level, FASTER with multiple tracks
• Shorter aisles result in better availability for pallets or pallet batches
• Allows deep-lane and shallow-lane storage formation within same racks
• Can reach beyond 12m height with vertical lift
• Highest storage density; 40% more than ASRS
• Equipped with slope climbing and automatic pallet levelling
• System configuration become standard due to features of change direction
• Standardize management process and simplify operation
• Clear visibility of inventory
• Material storage location is accurate
• All entry and exit are confirmed by scanning codes, which improves the accuracy and efficiency of operations
• Easily paired with AGV fleet, forklifts fleet or input-output conveyors
• It's scalable for any high throughput operation
• Supports automated receiving, order picking replenishment, layer picking, end-of-line production, staging for shipping
• Seamlessly pallet movement with multiple pallet shuttles
• Automatically performs inventory rotation
• Ensuring optimal performance and inventory control
• Provides full reporting on pallet traceability and SKUs stored
• Autonomous control of aging stock inventory
• Reports 100% accurate daily stock-counts
• The stock-count feature runs automatically in off-peak times
• Cross-stock check between database and pallets on storage lane for discrepancies
• WCS software is used to synchronize and manage all of Distribution Center workflows
• Storage Density Comparison

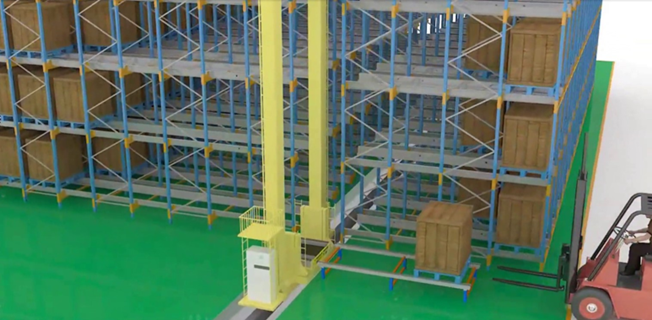

• Consists of the mature stacker crane technology & advanced functions of shuttle car
• It is completely automatic operated by WMS & WCS, and data is backed up automatically
• Uses less stack cranes by adding the aisle depth
• Low to medium SKUs and throughput
• FIFO & Random Inbound and Outbound with WMS
• For cold room with temperature -30°C to 45°C

Advantages

• Compared with AS/RS, the utilization has increased more than 30%
• Increase storage density storage 60% more than manual racking
• The cost of single storage is lower than regular AS/RS
• Flexible planning for warehouse and multi options for layout
• Improve work efficiency and reduce working time
• Saves manpower and costs

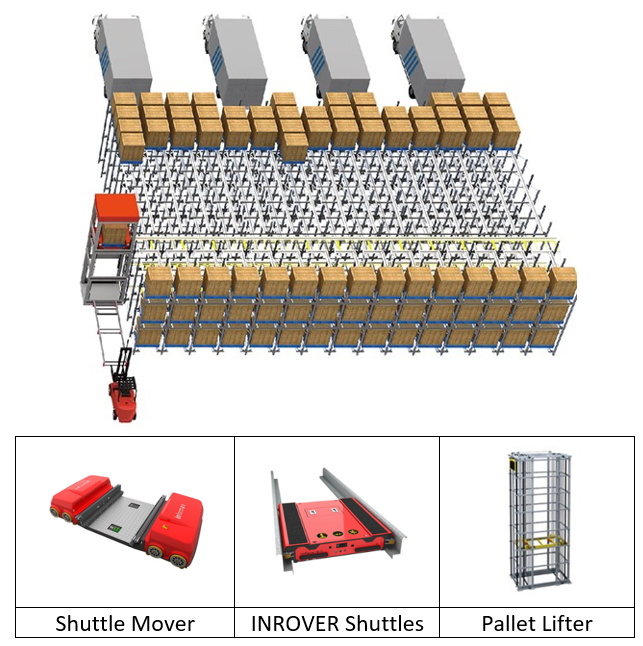

Advantages

• Highest Storage Density; Maximize space utilization
• 24 hours unmanned automatized operation
• Shuttle mover can change levels & increase flexibility
• Three independent movement directions, maximizing system efficiency
• System expandable by increasing number of INROVER Shuttle and shuttle Mover
• Adaptable to the change of season demands
• Shuttle car is charged by the shuttle mover during the movement
• Improve warehouse safety and efficiency
• Reduce warehouse operational costs

• Fully automated storing and retrieving with inventory control
• Safe and no reach truck is required inside the racking system

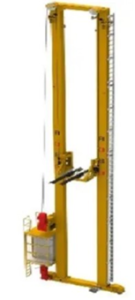

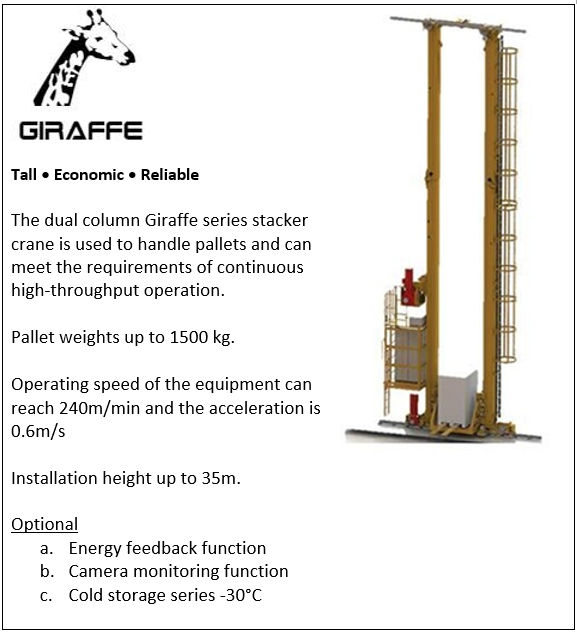

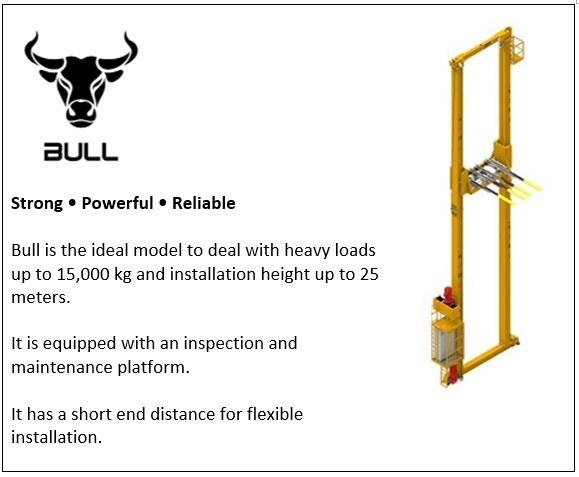

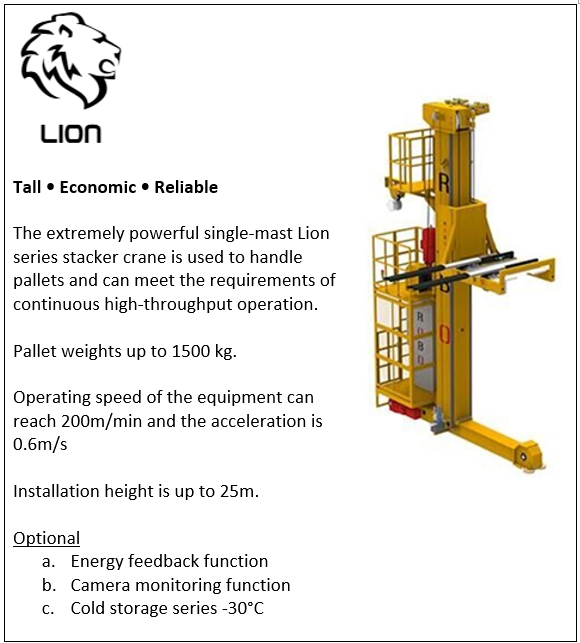

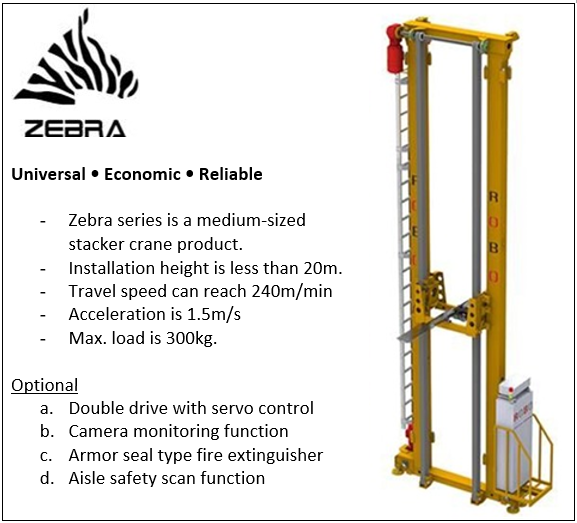

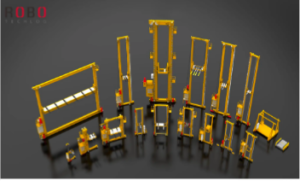

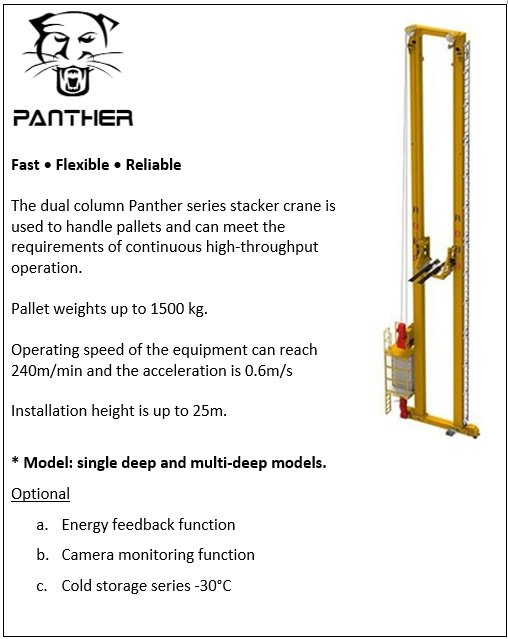

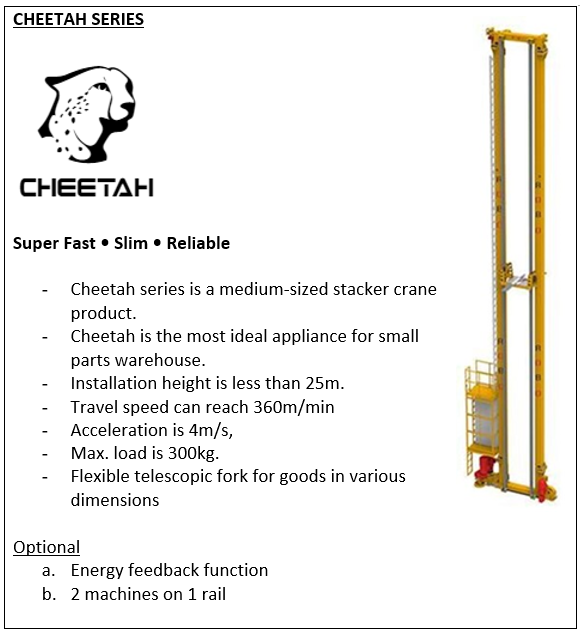

• Stacker Crane is used for to storing & retrieval
• Pallet space increment up to 100% with 50m height
• Suitable for high bay warehouse
• Cold room application: -25°C ~ 45°C

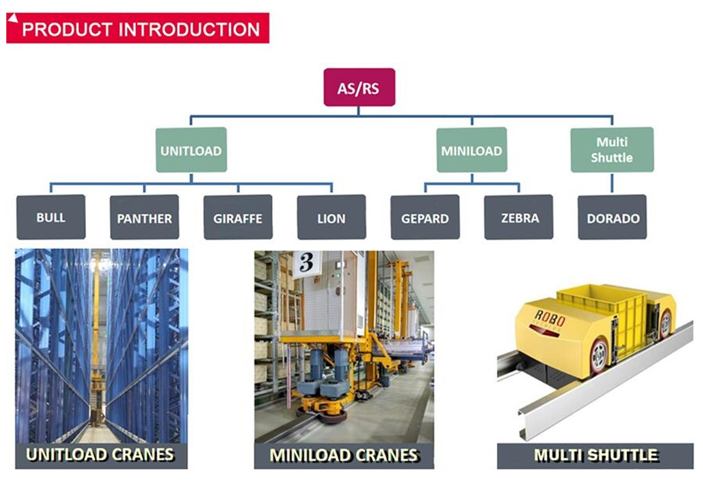

• ASRS Types:
  • Unit-Load AS/RS Cranes
  • Fixed-Aisle
  • Aisle-Changing
  • High Bay
  • Clad-Rack
• Mini-Load AS/RS
• Shuttle - and Bot-based AS/RS
• Carousel-based AS/RS (Vertical, Horizontal, and Robotic)
• Vertical Lift Module (VLM) AS/RS
• Micro-Load (Stocker)

System advantages:

• High space Utilization

  The space utilization of AS/RS is 2-5 times than common storage. The racking can be designed as single-depth or double-depth to improve storage capacity, also compatible with any size pallet.

• Improving efficiency of storage and picking

  AS/RS is dynamic storage and advanced logistics system, improving production management level. Compared with static racking system, the storage and picking efficiency is much improved.

• Labor-saving operation

  The pallet moving is handled by equipment and controlled by software system. So it requires minimum labor and allows to operate unattended around the clock.

• High adaptability with other automated storage robots

  AS/RS is able to work with other automated storage robots such as the shuttle car, shuttle mover, four-way shuttle and so on to meet diversified storage requirement and increase efficiency.
